Conveyor Frames
Mega Frame Range
Megaroller Idler Frames are designed to be a belt friendly alternative to conventional idler frames. Due to the innovative tubular cross-sections, conveyor belts can’t be damaged, ensuring an optimum belt life cycle. They can be fitted with all of Megaroller’s belt friendly conveyor rollers, to maximize productivity, minimize downtime, and ensure efficient operation of the conveyor system.
Our frames are built to customer specifications.
Idler Frames
Impact Frames
Steering Frames
Idler Frame Types
Megaroller Multisteer Steering Frames are produced using highest quality mild steel tubing, using the latest technologies, according to strict manufacturing standards for superior performance and longevity. Using Megaroller’s unique and innovative design, Multisteer frames are highly-responsive to the movement and weight of the load on the belt to reduce misalignment of the conveyor belt. By automatically adjusting the frame to compensate for the side movement of the belt, the belt is trained without the need for assistance from maintenance staff.
The Multisteer frames use a multiple pivoting mechanism mounted at a specific angle between the upper frame and the lower frame. The frame is fitted with Megaroller Impact rollers, which are mounted in a strategic configuration. The pivot mechanism is sensitive and reactive to weight distribution, ensuring that weight is distributed evenly on the belt. The pivot mechanism also allows the upper frame to swivel downward at the side where the belt carries more weight and at the same time the mechanism urges the upper frame to move forward in the direction of the belt travel, forcing the frame on the opposite side of the pivot to move backward.
These actions guide the conveyor belt to the center position, thereby preventing material spillage as well as conveyor belt, idler and structural damage caused by misaligned conveyor belts. This will help prevent the need to replace a total conveyor belt due to only showing wear on a small strip of the belt. Multisteer conveyor belt steering systems are available in all standard conveyor belt sizes in accordance with SANS 1313-1:2012.
Idler Frame Types

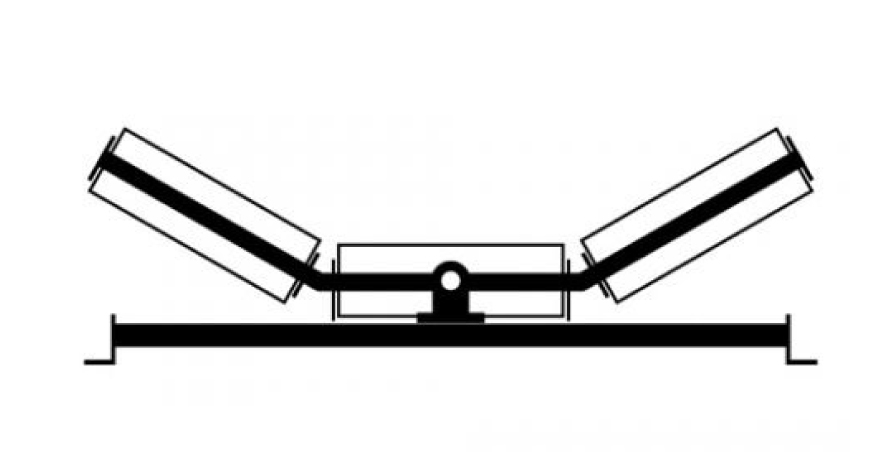

- Trough Idler Frames Adjustable Frames Heavy Duty Frames
- Flat Return V-Return
- Available in galvanized and various paint specs.
- Made from high-quality materials for a long lifespan.
- Reduces damage to conveyor belts.
- Ensures even, centered distribution of weight on the belt.
- Prevents structural damage to rollers.
- Custom design options.
Advantages of Steering Frames
Designed and tested to operate in hostile environments.
-
Prevents belt misalignment without the need for side guide rollers which are often the cause of belt edge damage.
-
Requires no maintenance as the multiple pivot mechanism is greased and sealed for life.
-
Made from high-quality materials for a long lifespan.
-
Reduces damage to conveyor belts caused by misalignment.
-
Ensures even, centered distribution of weight on the belt.
-
Prevents structural damage to rollers.
-
Prevents material spillage.
20˚ & 30˚ Trough 5 Roll
10˚ VEE Return
